EstlCam USB Adapter
Sep 28, 2020
·
1 min read

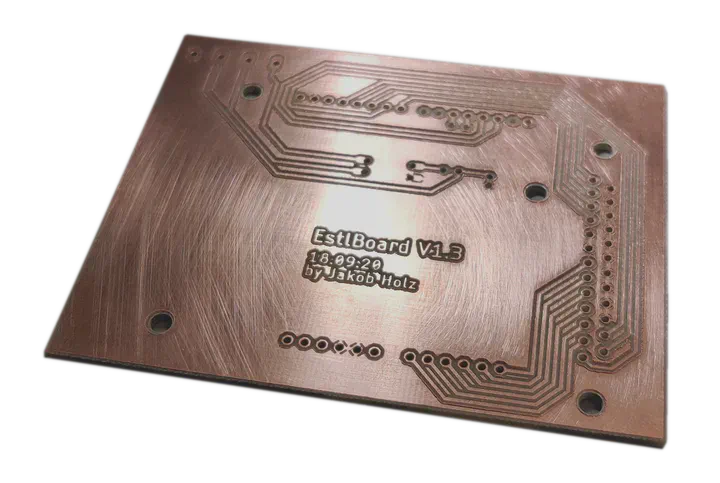

This was my first attempt at milling my own single sided circuit board on my 6040 CNC router. Along the way I had some issues with the pcb blanks bowing, but I ended up with a functional LPT to USB adapter for Estlcam.
Design files are available on GitHub
Because the pcbs blanks where bowed, the first couple attempts failed.

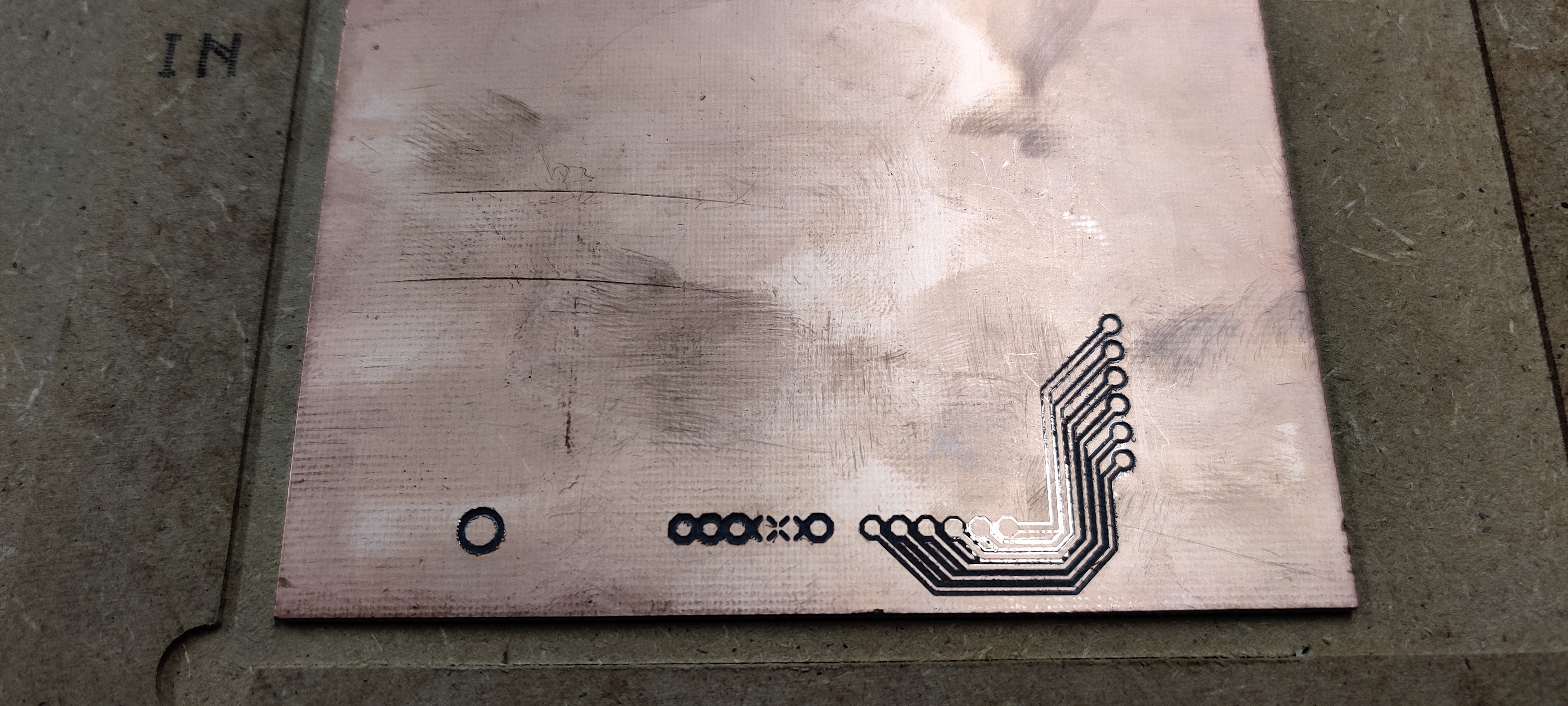

First attempt: Some of the clearance routings were too shallow.
By screwing the blank down, the bow was eliminated and a constant cutting depth led to more reliable isolation routing.

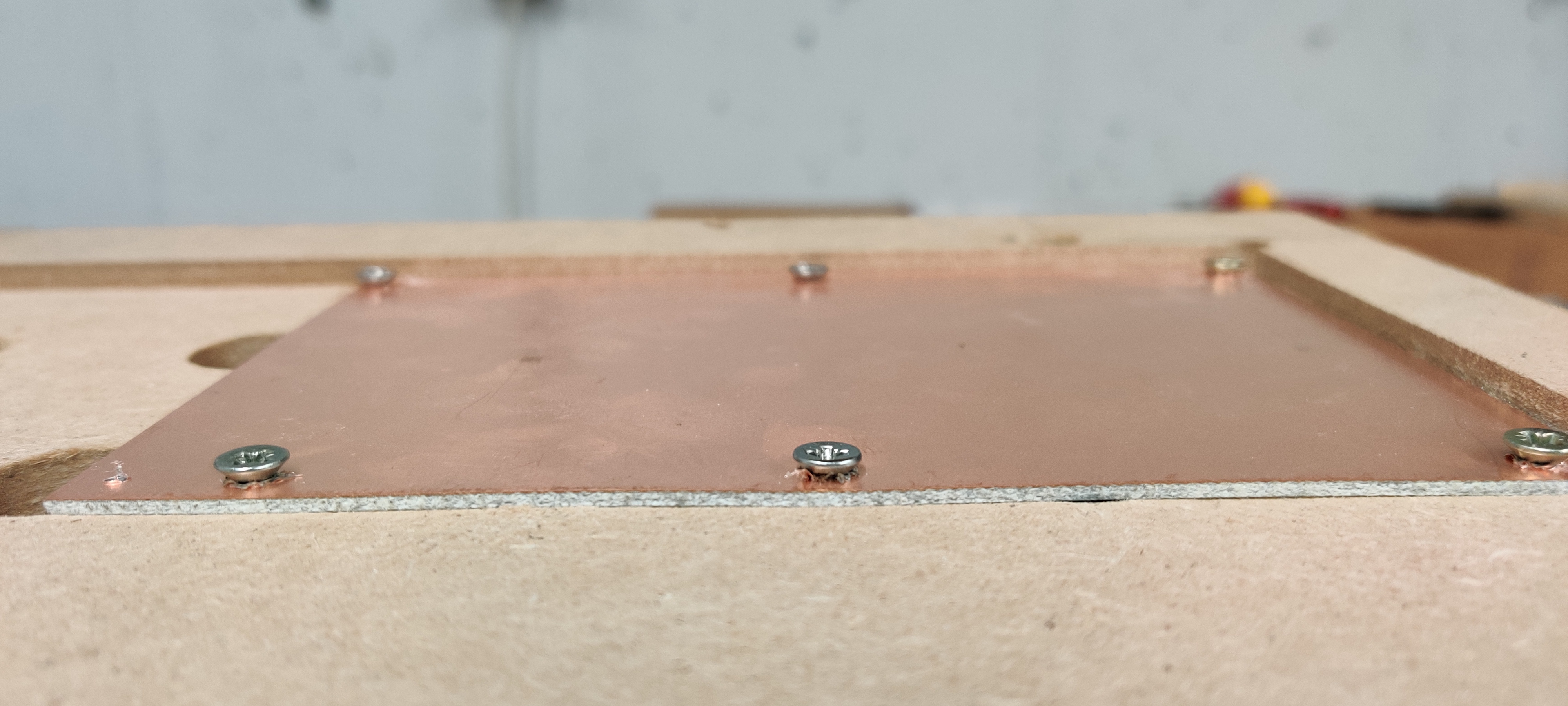

Next attempt: Screwing the blank down.

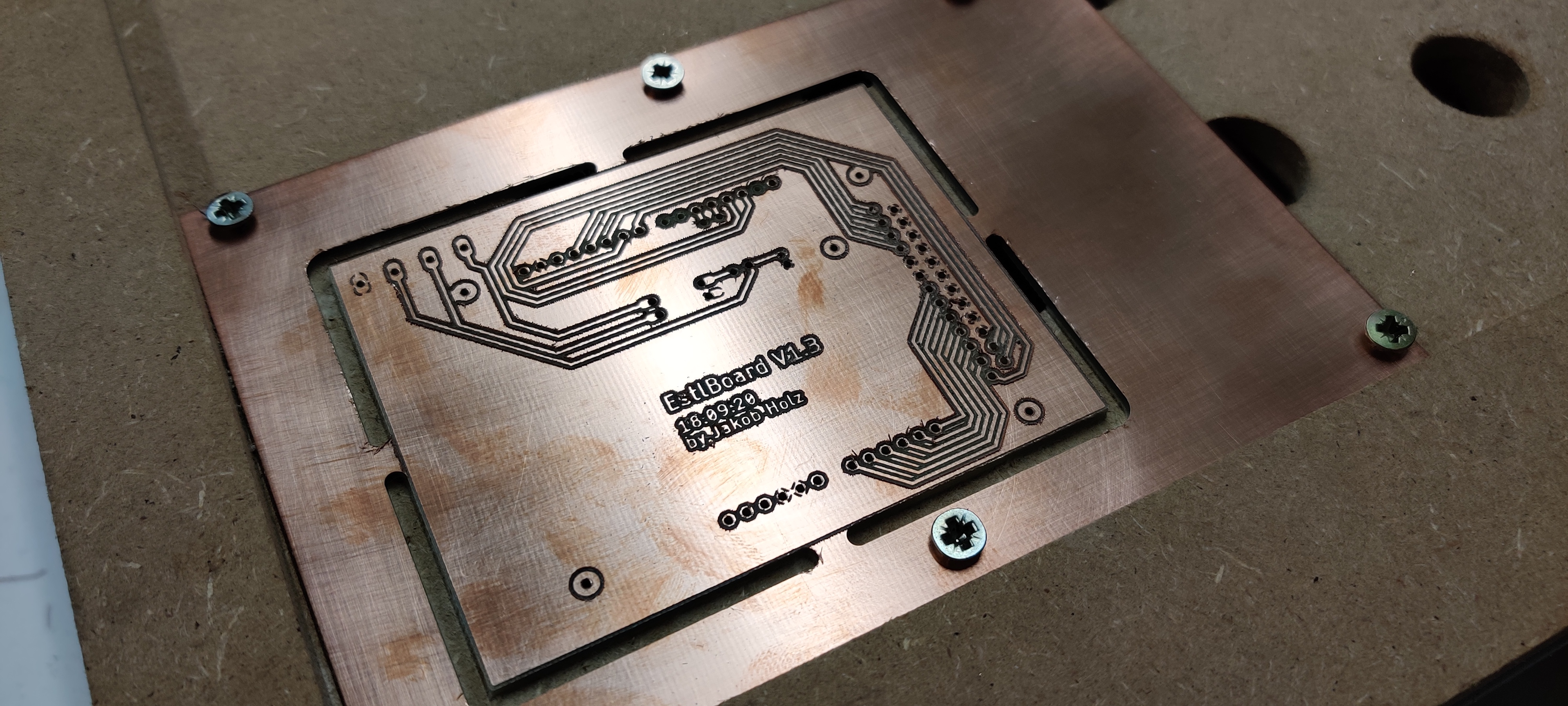

Successful attempt: Routed pcb.

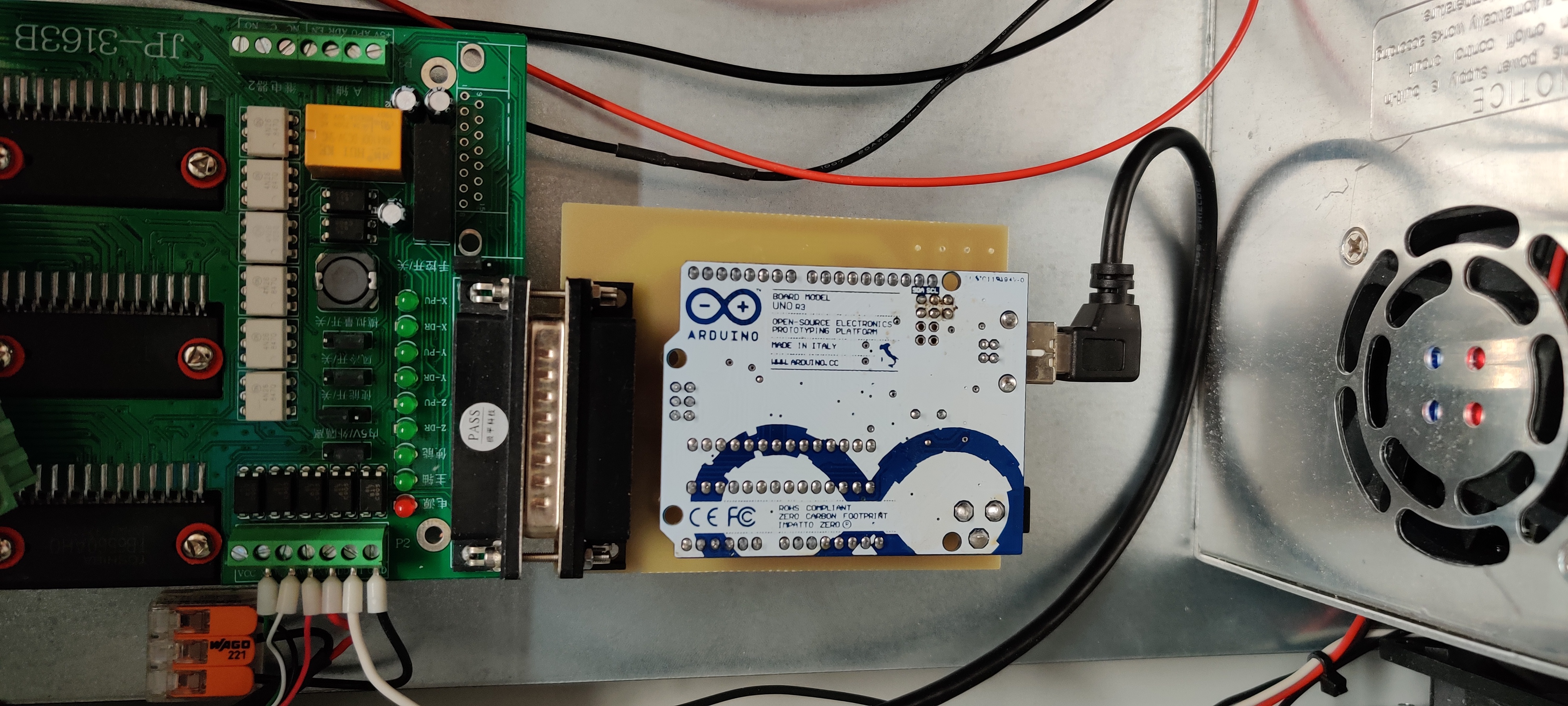

The pcb fitted in the cabinet.
